ENGINE
113 cc
Blue Core
YAMAHA SRI LANKA
Stylish and lightweight scooter designed for urban commuting with Blue Core technology.
AVAILABLE COLOURS
Match your personality with bold factory colour options. Switch between finishes to preview how your Ray ZR 113 looks in each shade.

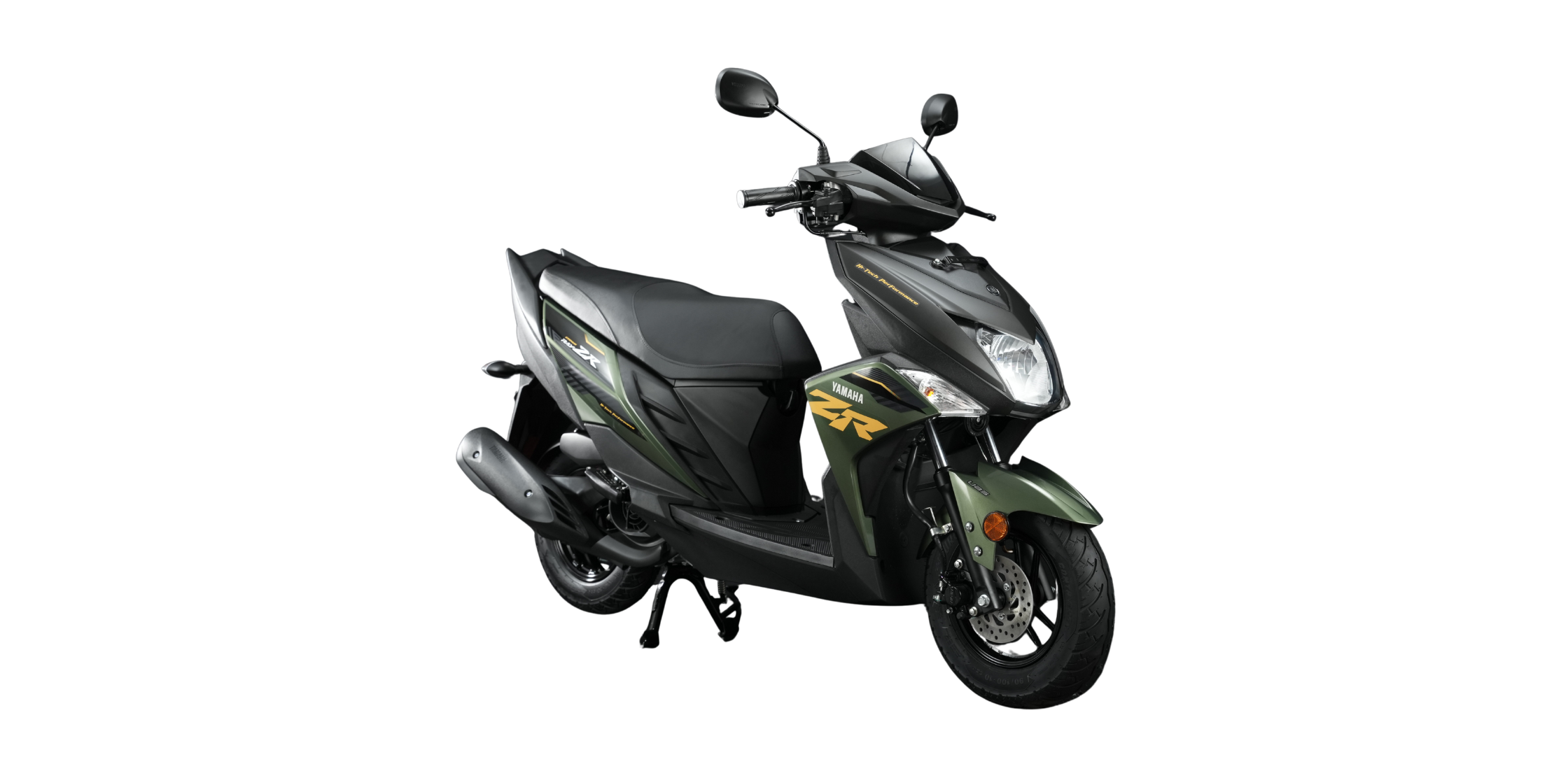

Selected Colour: High Sparkle Green
Ray ZR 113
Combines aggressive design with a reliable 113cc Blue Core engine for efficient urban performance.
Engine Type
Air-cooled, 4-stroke, SOHC, 2-valve
Displacement
113 cc
Maximum Horsepower
7.2 PS @ 7,500 rpm
Maximum Torque
8.1 Nm @ 5,000 rpm
Fuel Supply
Carburetor
Starting System
Electric start & Kick start
Lubrication System
Wet Sump
Ignition System
CDI (Capacitor Discharge Ignition)
Fuel Tank Capacity
5.2 L
Overall Length × Width × Height
1,820 mm x 700 mm x 1,115 mm
Seat Height
775 mm
Wheelbase
1,270 mm
Ground Clearance
130 mm
Kerb Weight
105 kg
Headlight
Halogen Bulb 12V, 35W/35W
Brake/Tail Light
12V, 21W/5W
Turn Signals
12V, 10W (Front & Rear)
Battery
12V, 5 AH Maintenance Free ETZ5
Speedometer
Analog
Fuel Gauge
Analog
Features
Stylish Visor, Comfortable Seat, Grab Bar
