ENGINE
113 cc
Blue Core
YAMAHA SRI LANKA
Dynamic and stylish scooter designed for urban commuting with a bold rally-inspired look.
AVAILABLE COLOURS
Match your personality with bold factory colour options. Switch between finishes to preview how your Ray ZR 115 Street Rally looks in each shade.

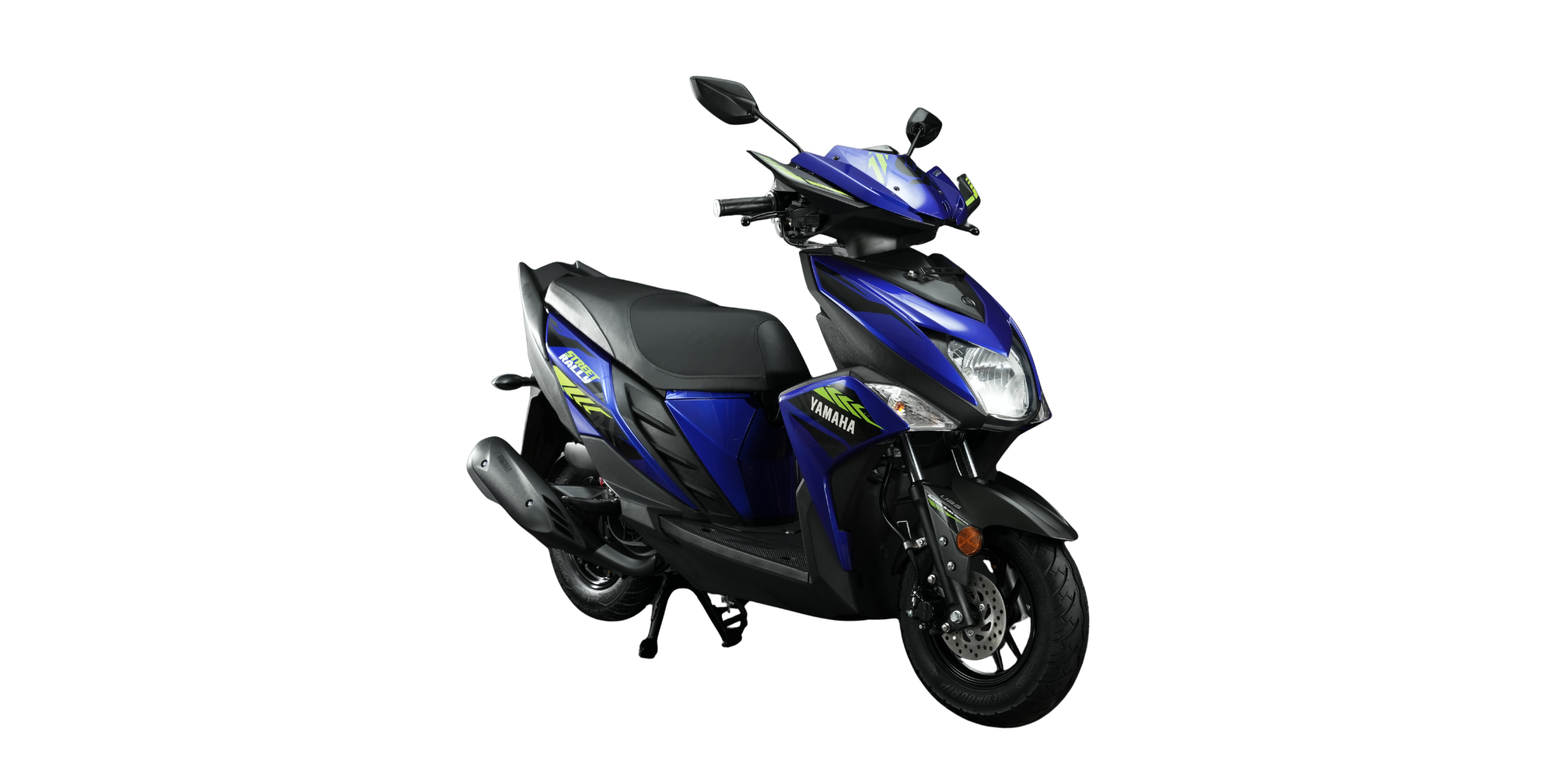

Selected Colour: Deep Purplish Blue Metallic
Ray ZR 115 Street Rally
Equipped with a digital console and sporty suspension for a dynamic urban riding experience.
Engine Type
Air-cooled, 4-stroke, SOHC, 2-valve
Displacement
113 cc
Maximum Power
7.2 PS @ 7,500 rpm
Maximum Torque
8.1 Nm @ 5,000 rpm
Fuel Supply
Carburetor
Starting System
Electric start & Kick start
Lubrication System
Wet Sump
Ignition System
CDI
Fuel Tank Capacity
5.2 L
Overall Length × Width × Height
1,820 mm x 700 mm x 1,115 mm
Seat Height
775 mm
Wheelbase
1,270 mm
Ground Clearance
130 mm
Curb Weight
105 kg
Transmission Type
V-belt Automatic
Front Suspension
Telescopic Fork (90mm travel)
Rear Suspension
Unit Swing (75mm travel)
Front Brake
Hydraulic Single Disc (170mm)
Rear Brake
Mechanical Drum
Headlight
Halogen Bulb 12V, 35W/35W
Brake/Tail Light
12V, 21W/5W
Turn Signals
12V, 10W (Front & Rear)
Tyres (Front & Rear)
90/100-10 53J Tubeless
Features
Knuckle Guards, Digital Console, Sporty Design
Battery
12V, 5 AH Maintenance Free ETZ5
Instrument Cluster
Digital Speedometer & Fuel Gauge
